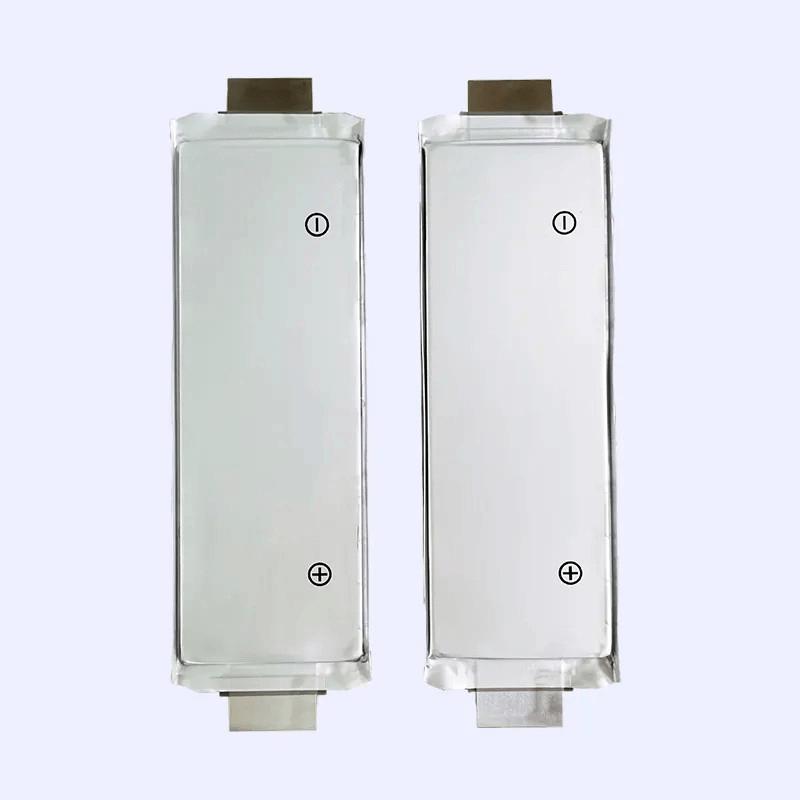

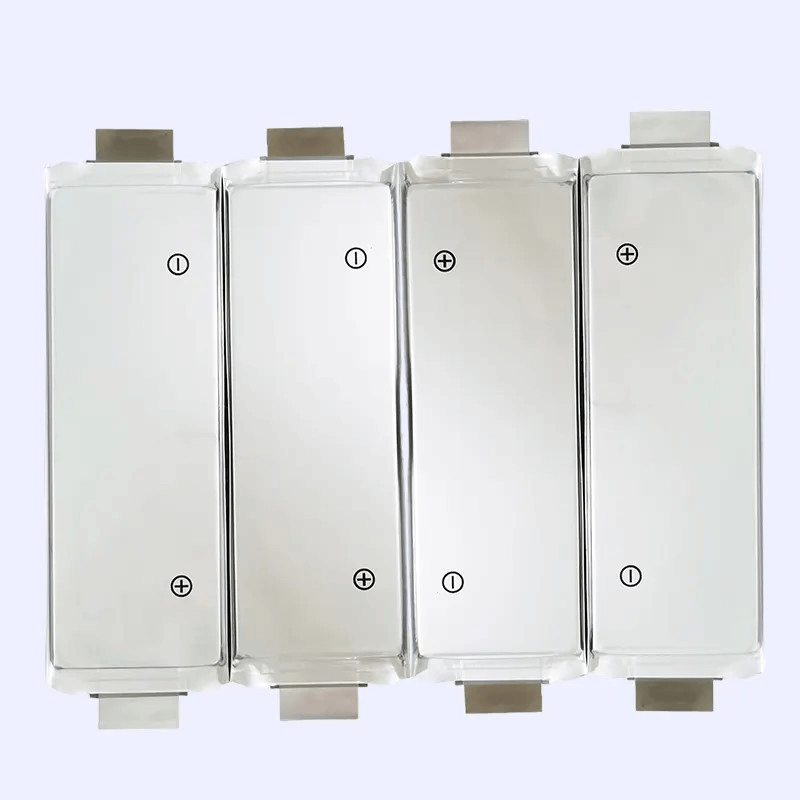

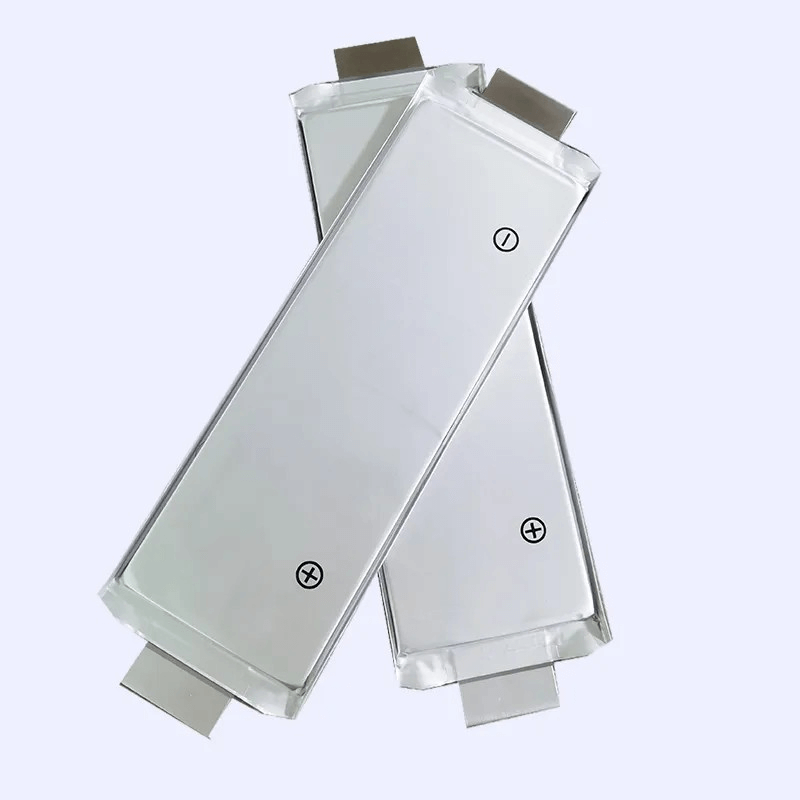

A Grade 3.7V 50Ah NMC Polymer Battery Cells for Electric Vehicles

2025-02-22 05:56

Specificatie

Batterij model	NMC-50NP
baterij type	Prismatic NMC rechargeable battery
Nominale spanning	3,7 V.
Nominale capaciteit	50 Ah
Laadspanning	4.2V
Ontlading Cut-off Voltage	2,75 V.
Max laadstroom	1C
Max. Ontladingsstroom	3C
Interne weerstand	≤0.8mΩ
Laadtemperatuur	0-45 ℃
Afvoertemperatuur	-20 ~ 55 ℃
Bewaar temperatuur	-20~35℃
Cyclus leven	≥2000 Times

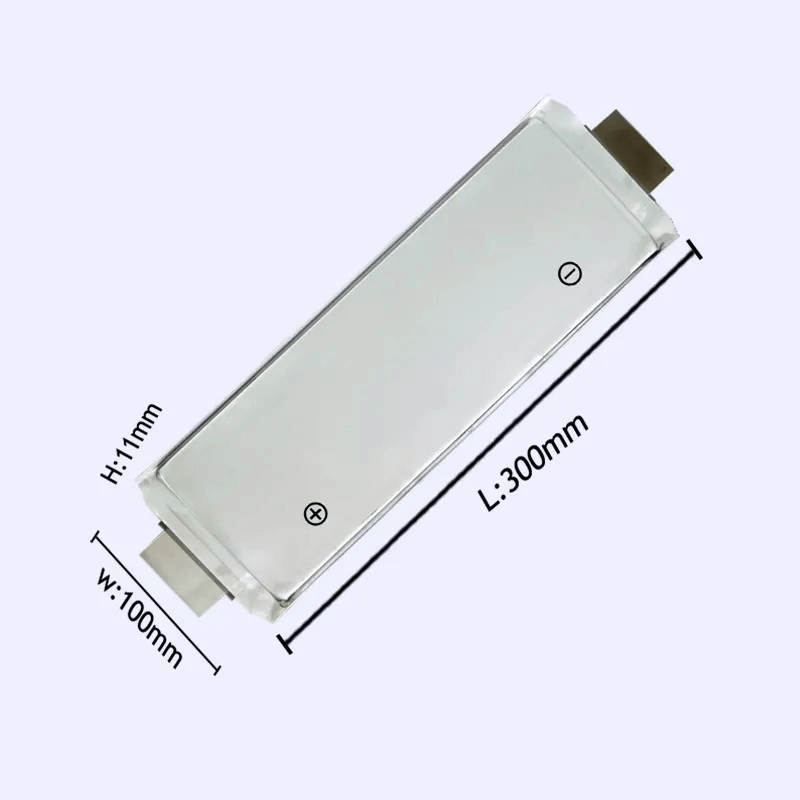

Batterij grootte	11*100*300mm
Gewicht batterij	0.74kg
Garantie	2 jaar

Test Procedure and its Standard

	Item	Test method	Standaard
1	Verschijning	Visual	No Defects and Leakage
2	Dimensie	Caliper for dimension	As item 4
3	Gewicht	Balance	As item 3.3
4	Shipment voltage	Voltmeter	3.50~3.6V  25%~35%SOC
5	Initial Internal Impedance	Measure the AC impedance at 1kHz	≤2.3mΩ (25%~35%SOC)
6	Discharge Capacity	Follow standard discharge after standard charge, at 25±2℃	*≥20Ah
7	Cycle Life (25±2℃, With splint ,Rest for 30 min between each cycle.)	Charge: 0.3C CC charge to 4.20V, 4.20V CV charge to 0.05C cut-off; Discharge: 0.5C CC discharge to 3.0V	≥70%Initial capacity @800 cycles
8	Leakage Test	The battery which is fully charged shall be stored at 60±2℃ and 85±5% RH for 7 days.	No Leakage.
9	H/L Temp. Characteristic (Hold for 5h@55℃ or 20h@-20℃ after full charging)	Charge: 0.3C CC charge to 4.20V, 4.20V CV charge to 0.05C cut-off at 25±2℃ Discharge: 0.2C CC discharge to 2.2V at -20±2℃; 0.2C CC discharge to 2.75V at 55±2℃.	Discharge capacity rate: *≥70%Initial Capacity -20±2℃ *≥90%Initial Capacity 55±2℃.

Safety Criteria for Acceptance

Item	State	Test method	Standaard
External Short	Fully Charged	Battery terminals are short-circuited with a resistance of less than 100mΩ for 10minutes. Observe 1 hour. Tests are to be conducted at room temperature.	NO EXPLOSION AND NO FIRE.
Over-Discharge	Fully Charged	1C CC discharge for 90minutes after standard charge，Observe 1 hour.	NO EXPLOSION NO FIRE AND
Heating	Fully Charged	Put the battery into an oven at RT, and increase the temperature at a rating of 5℃/min to 130±2℃, after the oven temperature reached to 130℃±2℃, maintain for 30 minutes at that temperature before the test is discontinued.，Observe 1 hour.	NO EXPLOSION AND NO FIRE.
Crush	Fully Charged	Crush between two flat plates. Applied force is about 13kN, Observe 30min.	NO EXPLOSION AND NO FIRE.
Overcharge	Fully Charged	0.33C CC Charge the battery to 1.1 times of the max charge voltage or continue to charge for 1 hour after charge the battery to the 115%soc, Observe 1 hour.	NO EXPLOSION AND NO FIRE.
Temperature Cycling	Fully Charged	Reducing the chamber temperature to -40℃ within 60 minutes and maintaining this temperature for 90 minutes, Raising the chamber temperature to 25 ℃ within 60 minutes, Raising the chamber temperature to 85℃ within 90 minutes and maintaining this temperature for 110 minutes, Reducing the chamber temperature to 25℃ within 70 minutes. Repeating the sequence for a further 4 cycles, Observe 1 hour	NO EXPLOSION AND NO FIRE.

FAQ

Q: Which model should I choose?

A: Tell us your demands for cells, including capacity, voltage, charge and discharge rate, application areas, etc. We will recommend you the most suitable cell model.

Q: How do I guarantee product quality?

A: We develop raw material to produce cell , We control well in cell production process, we test performance of batteries before shipping, and provide good after-sale service.

Q: What should I do if I find something wrong with batteries?

A: Describe your problems to us, we will quickly response to that and provide solutions as soon as possible.

Q: What about price? Can I get lower price for my order?

A: It depends on your quantities, the more order you place, the more discount you will get.

Q: Why I get different quotation for the same product during different time of the year?

A: The price of our cells will be adjusted if the price of raw materials changes. We　have to do so in order to transfer cost pressure.

If you need more details, please fell free to contact us!
