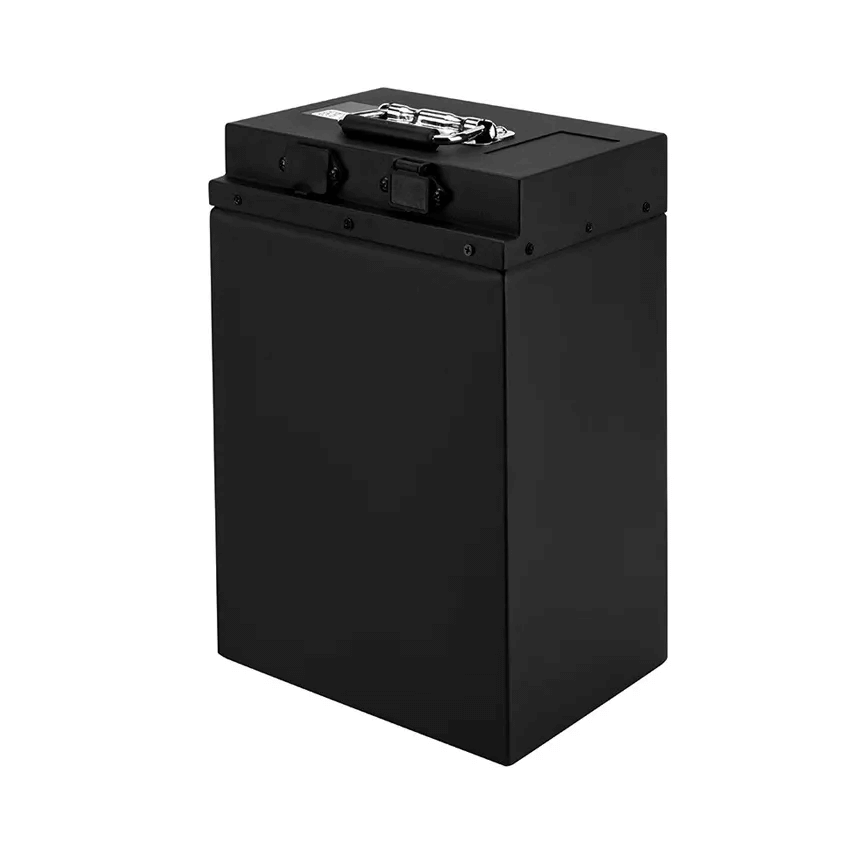

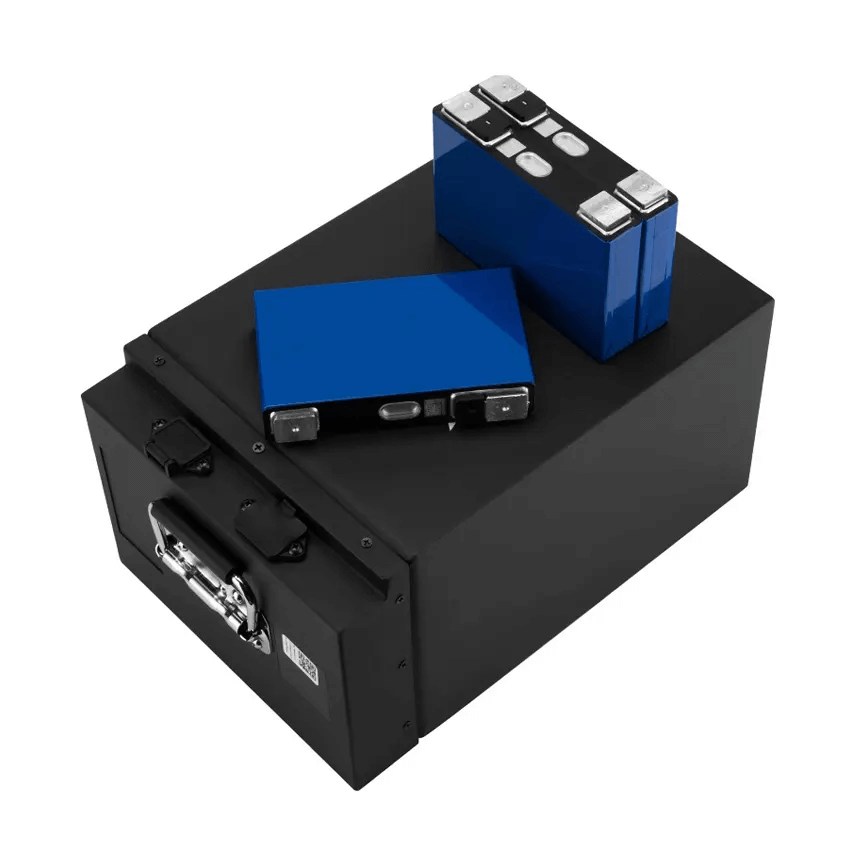

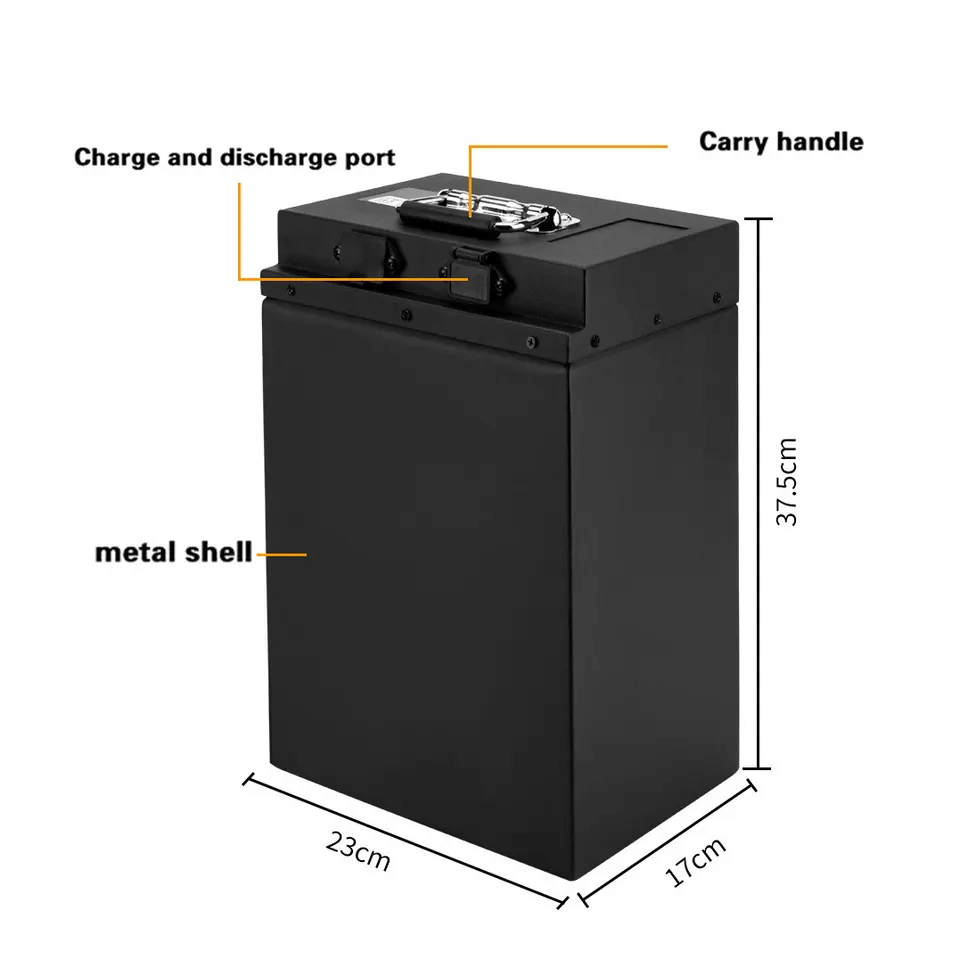

Batterij voor elektrisch voertuig 60v 40ah 50ah 65ah batterijpakket

2023-08-24 08:06

Specificatie

Functieparameter:
Nominaal Battery Energy	3900wh
Nominaal Capaciteit	65Ah
Nominaal Spanning	60V
Interne weerstand	≤22mΩ
Cyclus leven	>6000
Maanden zelfontlading	<3%
Oplaadgegevens
DC normale laadspanning	54.75±1Vdc
Oplaadmodus	0.2C tot 54.75V, dan 54.75V, laadstroom tot 0.02C (CC/CV)
Aanbevolen laadstroom	≤50A
Toegestaan Max. Laadstroom	50Adc
Laad uitschakelspanning	54.75±1Vdc
Lossingsgegevens:
Continue ontladingsstroom	50A
Toegestaan Max. Stroomafvoerstroom	100A (optie:100Adc)
Belde van DC-ontladingsspanning:	37.5V-54.75Vdc
Werk omstandigheden
Laadtemperatuur	0℃ tot 45℃ (32℉ tot 113℉) @60±25% relatieve vochtigheid
Afvoertemperatuur	-20℃ tot 60℃ (-4℉ tot 140℉) @60±25% relatieve vochtigheid
Bewaar temperatuur	0℃ tot 40℃ (32℉ tot 104℉) @60±25% relatieve vochtigheid
Beschermingsniveau behuizing	IP67

Kenmerken

1.Rechargeable battery
2.Use of Iron(Fe) as a cathode material
3.Higher discharge current
4.Do not explode under extreme conditions and weight less

Voordelen

1.Extremely high rate capability
2.Safe lithium battery
3.Good storage characteristics
4.Good high temp performance
5.Long cycle life to 2000 times
6.High capacity & light weight
7.Environmentally friendly
8.No memory effect

We can provide you with customized services

Customized 7.4V-12V-24V-36V-48V-52V-60V-72V...LITHIUM BATTERY PACK

The capacity and dimension can customize according to your request:

1. Aangepaste batterijgrootte en schaalmateriaal:

2. Aangepaste BMS laad- en ontlaadstroom

3.Aangepaste stekker en stopcontact, connectordraad;

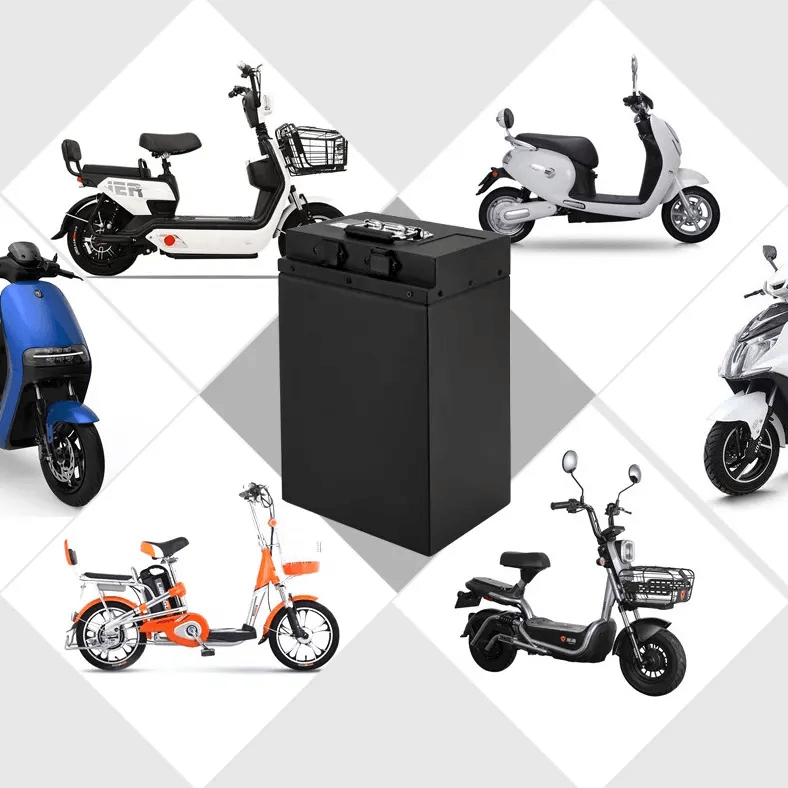

AIN Belangrijkste toepassingen van lithiumbatterijen
Elektrische aandrijftoepassingen	startaccu van de motor; Langzame snelheidsauto; intellectuele robots; elektrische fiets / motorfiets / scooter; golftrolley / -karren / sightseeing-auto; elektrisch gereedschap.
Energie opslag	zonne- en windenergiesysteem; stad aan / uit het net; gemeenschap en familie, RV Caravan, Marine jachten.
Back-upsysteem en UPS	Telecommute base, CATV-system, computer server center, medical instrument, military equipment.
Andere applicaties	beveiliging en elektronica; mobiele POS, mijnbouwlicht / zaklamp / LED-licht / noodverlichting.

Ons bedrijf

WHY CHOOSE US?
1.Our company has 13 years experience in battery R&D,producing and the overseas marketing.
2.Flexible customizing and Manufacturing
3.6,000,000Ah monthly production capacity
4.Each process for making battery were under strict management and control,all of the battery were under full inspection before delivery.
5.With professional R&D team, experienced workers and advanced requirements, we are determined to provide you high-quality battery.

6.Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year Guarantee,we will give instruction for how to use our products.



FAQ

Q: What is your warranty?
A: We guarantee the quality before the item is shipped. The warranty will be offered based on different type of battery. Any damages caused by improper use are not covered by our warranty.

Q: What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.

Q: Are your factory or trading company?
A: We are professional lithium-ion rechargeable batteries manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients around globe.
