Specificatie
Elektrisch | Nominale spanning | 12,8 V. |
Nominale capaciteit | [email protected] | |
Energie | 3840Wh | |
Interne weerstand | ≤35mΩ | |
Cyclus leven | 2000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
Zelfontlading | ≤3,5% per maand bij 25 ℃ | |
Standaard opladen | Max. Laadspanning | 14,0 ~ 14,6V |
Oplaadmodus | Bij een temperatuur van 0 ℃ ~ 45 ℃, opgeladen tot 14,6 V bij een constante stroom van 0,2 C, en vervolgens continu veranderd met een constante spanning van 14,6 V totdat de stroom niet meer dan 0,02 C was | |
Laadstroom | 100A | |
Max. Laadstroom | 100A | |
Standaard ontladen | Stroom ontladen | 100A |
Max. Hoogte Continue stroom | 100A | |
Max. Pulsstroom | 200A (<3S) | |
Uitschakelspanning ontladen | 10.0 | |
Bedrijfsomstandigheden | Laadtemperatuur | 0 ℃ tot 45 ℃ (32 ℉ tot 113 ℉) @ 60 ± 25% relatieve vochtigheid |
Afvoertemperatuur | -20 ℃ tot 60 ℃ (-4 ℉ tot 140 ℉) @ 60 ± 25% relatieve vochtigheid | |
Bewaar temperatuur | 0 ℃ tot 45 ℃ (32 ℉ tot 113 ℉) @ 60 ± 25% relatieve vochtigheid | |
Waterstofbestendigheid | IP55 | |
Structuur | Cel en indeling | 4S1P, prismatic |
Behuizing | Plastic | |
Afmeting (L * W * H * TH) | 522*270*217*217mm | |
Gewicht | Approx. 27.5Kg | |
Terminal | M8 |
Can add LCD fuel gauge.
Can add Control switch.
Can add Coulomb lamp display.
Can add USB connector.
◆ Gebruikmakend van de technologie van lithiumijzerfosfaatcel, superieure veiligheid, duizenden cycli, 100% DOD, onder normale omstandigheden.
◆ Ingebouwde automatische bescherming tegen overladen, ontladen, overstroom en te hoge temperatuur.
◆ Vrij van onderhoud.
◆ Balancering van interne cellen.
◆ Lichter gewicht: ongeveer 40% ~ 50% van het gewicht van een vergelijkbare loodzuuraccu.
◆ Opladen met de meeste standaard loodzuurladingen (set).
◆ Breder temperatuurbereik: -20 ℃ ~ 60 ℃.

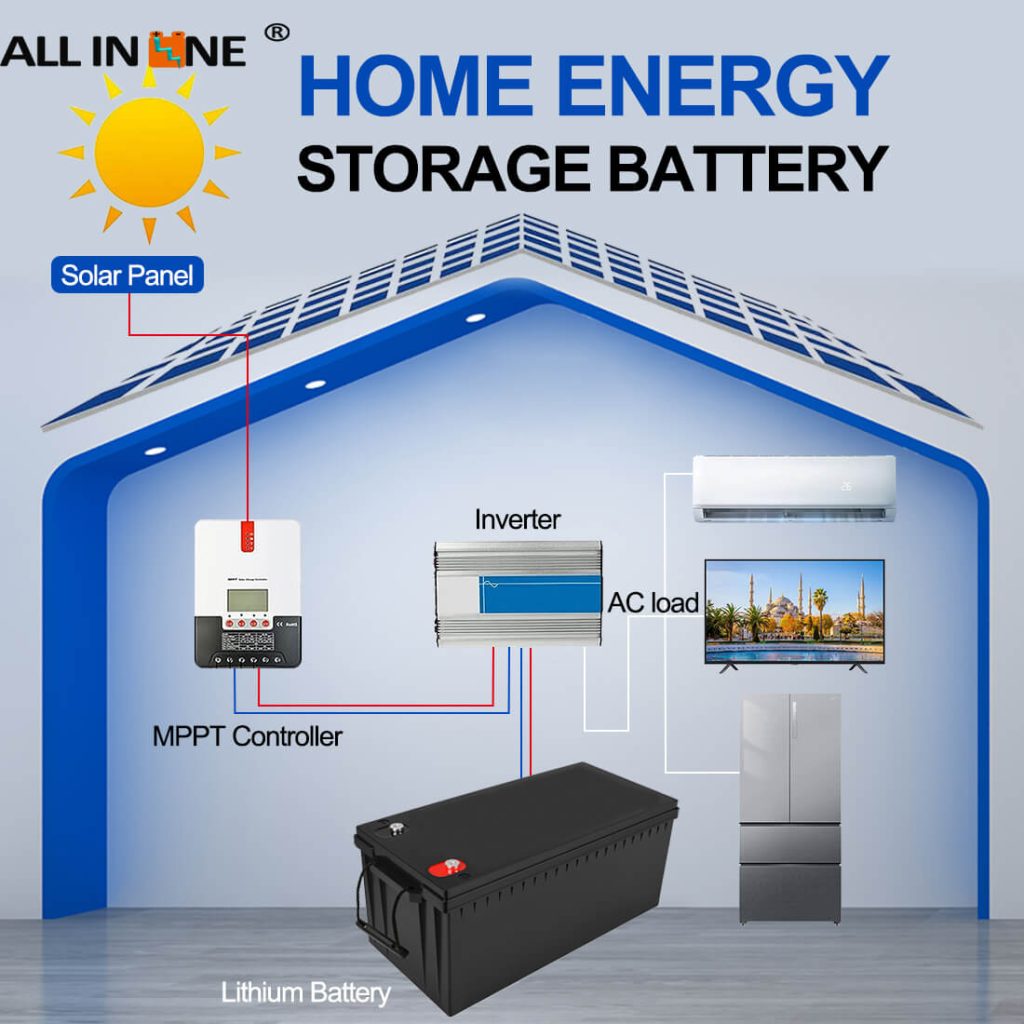

◆ Ondersteuning voor serie-applicatie-uitbreiding (tot 51,2 V) en twee parallelle toepassingen.

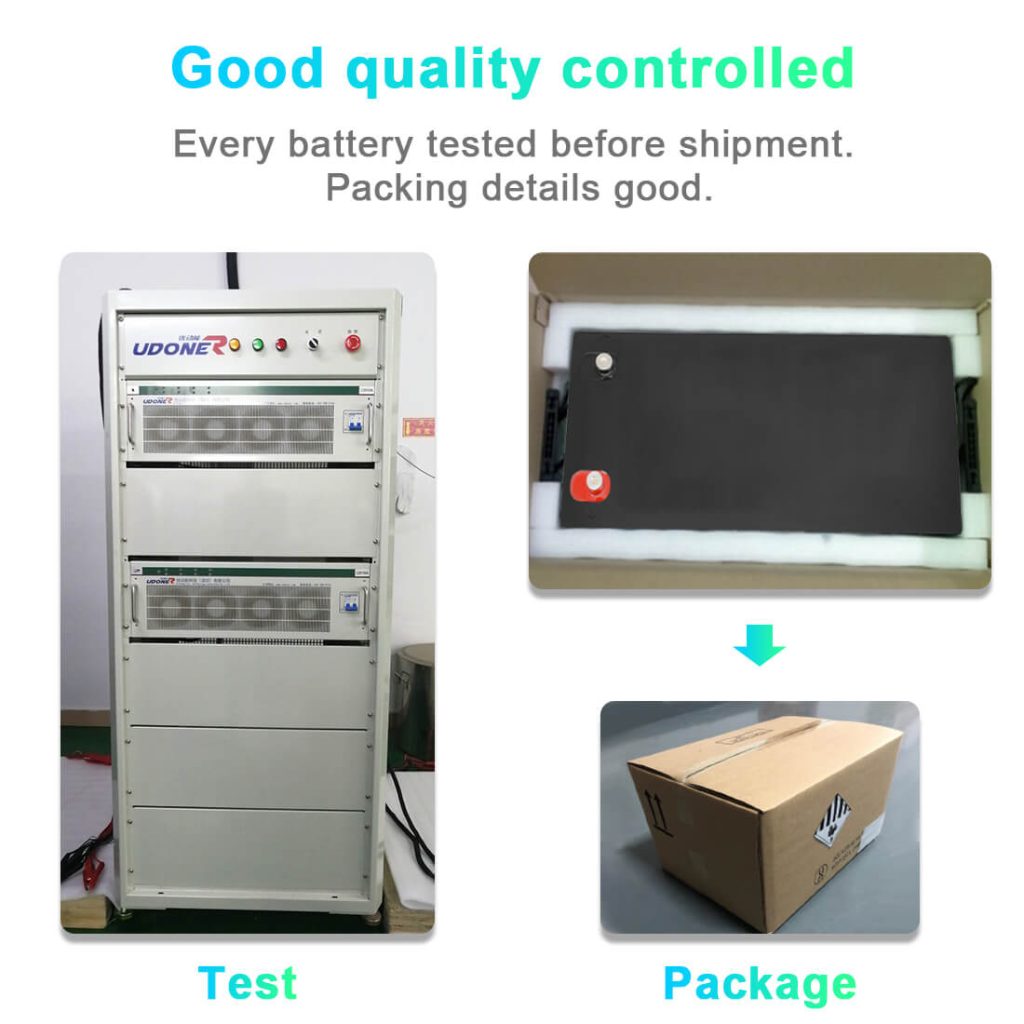

Onze fabriek
Verpakking en verzending
FAQ
Q1. Is it OK to print my LOGO on the product?
A. Ja. Informeer ons formeel vóór onze productie en bevestig eerst het ontwerp op basis van onze steekproef.
Our factory supports Customized: case, size, battery structure, logo, packaging etc.
Q2. Can I have a sample order?
A.Yes, we welcome sample order to test and check quality.
Low MOQ, 1pc for sample checking is available.
Q3:Which product is hot sale in your company?
A: LiFePO4 battery 24Ah,50Ah,100Ah,200Ah,280Ah,300Ah; 12V,24V, 48V LiFePO4 battery pack and so on.
Q4. What about the lead time?
A. Sample needs 3-7 days, mass production time needs 7-20 days, it depends on order quantity.
V5. Hoe ga je verder met een bestelling?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6.Which certificates do you have?
A: We hebben CE / FCC / ROHS / UN38.3 / MSDS ... enz.
Q7.How about warranty?
A:3-5 year warranty
Q8: Are these battery packs compatible with my inverter?
A: Yes, Sir. Our battery pack is compatible with most brands of inverters on the market.
Contact us and let me tell you more.
Q9. How do you ship the goods and how long does it take to arrive?
A.It usually takes 5-7 days to arrive. Train and Airline and Sea(DDP) shipping is also optional.
Q10: How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing
status, photo you the done order and let you know the forwarder picked it up.
