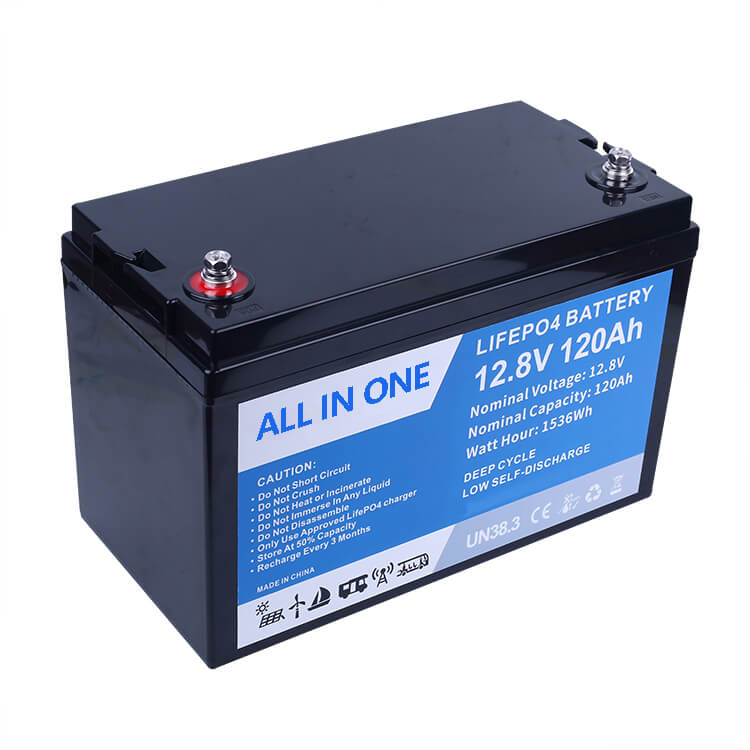

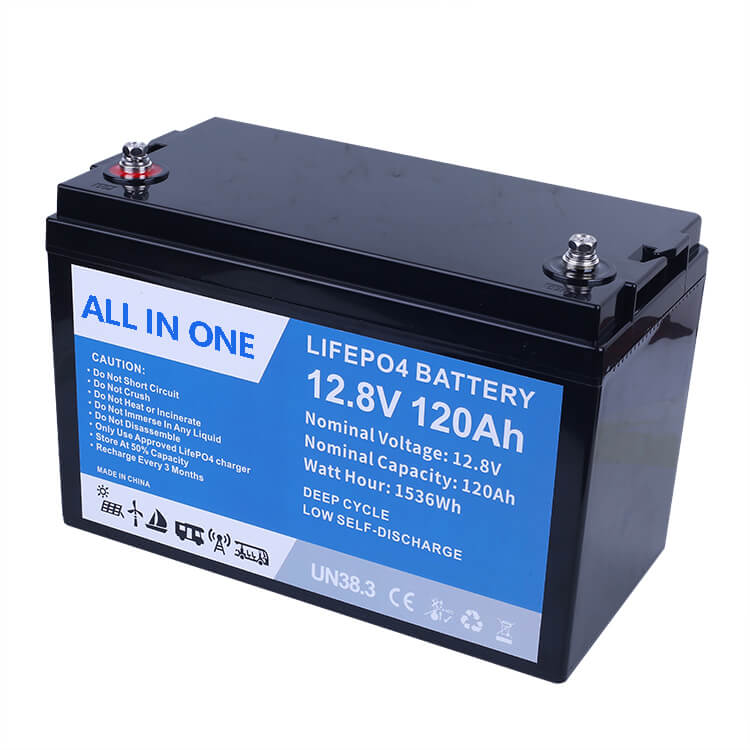

Oplaadbare batterij 12V 120Ah lithium-ionbatterij

2022-02-22 08:29

Specificatie

product name
lifepo4 battery pack
model-
AIN12120
Certificatie
CE / UN38.3 /MSDS
brand
ALLES IN EEN
Battery specifications
12.8V 120Ah
Warranty period
3 jaar
Max. charging voltage (V)
14.6
Max. charging current (A):
50
Floating charge voltage (V)
13.6~13.8
Max. continuous discharge current (A)
80
Max. peak discharge current@10s (A)
160

NOTE

1. if you need LED screen and bluetooth function , tell us.

2. Before you place an order, you need to contact with us : charger(how many), Bluetooth function, LED screen. What you will use it for ? (to determine which cell to choose), and then how much the maximum power of the load W ? and how much -maximum or continuous discharge current A ? . These questions are used to determine which BMS protection board we will use .

3. All models of shell material, weight, size, color, BMS can be customized

For 12V 120Ah battery
- Series: It is not recommend to connect more than 4 batteries in series .
- Parallel: It is not recommend to connect more than 4 batteries in parallel.
- DO NOT string batteries in series and parallel at same time. Doing so can cause catastroph-ic failure.
2. Dos
*Before making any connections, make sure to charge each battery up to 14.6V with a
proper lithium charger. ALL BATTERIES SHOULD BE AT THE SAME STATE OF CHARGE PRIOR TO
CONNECTING, otherwise you will encounter balance issues within your system.
*All cables and connections must be able to accommodate the high currents that can be
delivered by the battery. Appropriate fuses and circuit breakers are highly recommended to protect
downstream componentsfrom currentspikes and short circuits.
*In parallel battery banks , the cables between each battery should be of equal length to
ensure that all batteries in the system can work equally together.
*To string multiple batteries in parallel,first connect the positive terminals of batteries to
each other. Then do the same with the negative terminals . Finally, connect the positive and
negative terminals of the first battery to the system. This type of arrangement is used to
increase the overall battery capacity while keeping the voltage the same.

Toepassing

◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting

Onze fabriek



Verpakking en verzending

FAQ

1.Q: Marine/RV/Vehicle can i customized my battery pack?

A: Ja natuurlijk, laat me gewoon weten wat u precies nodig heeft, ons professionele ingenieursteam zal u een uitstekende oplossing bieden, meer dan u verwacht.

2 Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low, can i get a cheaper price? and i can see your competitor sells more cheap then you.

A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.

3 Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?

A: Nee meneer, misschien weet u dat de levensduur van de cel niet alleen afhangt van de kwaliteit zelf, maar ook wordt beïnvloed door de ontlaad- / oplaadsnelheid van de werkelijke temperatuur. Het is dus helemaal niet verantwoordelijk als een leverancier u de levensduur van de cyclus vertelt, maar niet over het daadwerkelijke gebruik praat. Voor kamertemperatuur 25 ° C en 1 ° C ontlading en 0,5 ° C opladen, kan de levensduur van de batterij meer dan 4000 cycli bedragen en 5 jaar garantie, alleen gebruik van energieopslag.

4 Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?

A: Ja meneer, ons batterijpakket kan compatibel zijn met de meeste merken omvormers op de markt, neem contact met ons op en laat me u meer vertellen.

5.Q: hoe zit het met de levertijd en verzending?

A: some of times in stock, we can make 3-7days fast delivery. For USA,Canada,Austraila and most of European country , we provide tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at your home! We also have Oversea warehouse service, 3-7days arrive, no tax fees, please contact with our sales !

6.Q: Kan het serie of parallel zijn voor gebruik?

A: Ja meneer, het kan max. 4 in serie of parallelschakeling voor gebruik (12V-serie) en geen extra apparaat.

Notitie: Wij zijn een fabrikant van batterijen. Alle producten ondersteunen geen detailhandel, we doen alleen B2B-zaken. Neem contact met ons op voor productprijzen!
